RCDA series air cooled suspended electromagnetic iron remover brief description:
RCDA series air cooled hanging type electromagnetic iron extractor internal air conditioning fan forced air cooling, has the characteristics of simple operation, easy to use, suitable for good environmental conditions, used for crusher before and conveyor belt material in addition to iron, roller press, crusher, vertical mill and other mechanical equipment plays a reliable protective role.

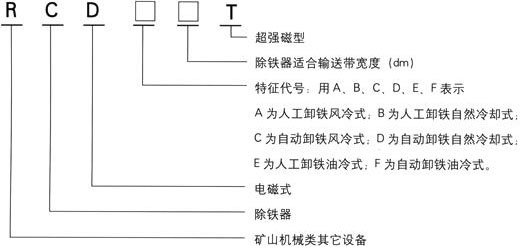

The meaning of electromagnetic iron remover model:

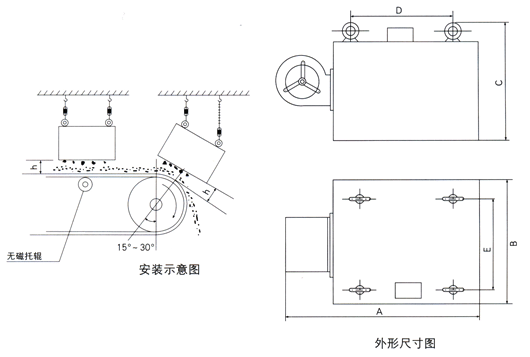

RCDA series air-cooled suspended electromagnetic iron eliminator installation diagram:
RCDA series air cooled suspension type electromagnetic iron removal main technical parameters:
|
Model \ Parameter \ item
|
To adapt to the bandwidth
mm |
Rated hoisting
h=mm |
The thickness of the material
≤mm |
The excitation power
≤kw |
Magnetic field intensity
≥mT |
The fan power
≤kw |
To adapt to the belt speed
≤m/s |
A week
|
weight
Kg |
Overall dimensions mm
|
|||
|
A
|
B
|
C
|
D.E
|
||||||||||
|
RCDA-4
|
400
|
100
|
70
|
0.6
|
50
|
0.15
|
2.5
|
連續(xù)
|
350
|
620
|
400
|
360
|
240
|
|
RCDA-5
|
500
|
150
|
110
|
1.0
|
60
|
0.15
|
450
|
710
|
500
|
450
|
340
|
||
|
RCDA-6
|
600/650
|
180
|
130
|
1.6
|
60
|
0.15
|
620
|
910
|
600
|
480
|
400
|
||
|
RCDA-6.5
|
650
|
200
|
150
|
2.0
|
70
|
0.37
|
750
|
990
|
650
|
500
|
450
|
||
|
RCDA-8
|
800
|
250
|
200
|
4.0
|
70
|
0.37
|
980
|
1080
|
800
|
600
|
600
|
||
|
RCDA-10
|
1000
|
300
|
250
|
6.0
|
70
|
0.45
|
1330
|
1400
|
1000
|
670
|
800
|
||
|
RCDA-12
|
1200
|
350
|
300
|
8.0
|
70
|
0.45
|
1950
|
1600
|
1200
|
750
|
1000
|
||
|
RCDA-14
|
1400
|
400
|
350
|
10
|
70
|
0.8
|
2870
|
1910
|
1400
|
780
|
1200
|
||
|
RCDA-16
|
1600
|
450
|
400
|
15
|
70
|
0.8
|
3800
|
2010
|
1600
|
810
|
1400
|
||
|
RCDA-18
|
1800
|
500
|
450
|
20
|
70
|
1.3
|
4500
|
2360
|
1800
|
930
|
1600
|
||
|
RCDA-20
|
2000
|
550
|
500
|
25
|
70
|
1.3
|
6900
|
2560
|
2000
|
980
|
1800
|
||
RCDA-T series air cooled suspended electromagnetic iron removal with super magnetic type: T1 magnetic field intensity 90mT T2 120mT T3 150mT
